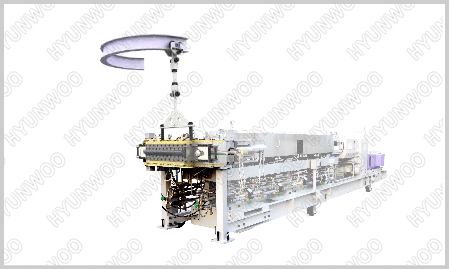

Die Head

Hy’d Clamping Hinge Bolting Connecting Adapter

□ Full Opening System (135˚)
□ Easy change of Screen Mash & Breaker Plate
□ Easy Disassembly and assembly of Screw Shaft
□ Prevention of Resin Leak by Hydraulic Clamping

Hy'd Clamping

■ Specification ※ If you click the model name, you can see the details.

Model Type Oil Hy`d Unit (High Pre`s) Cylinder Area & Clamping Time Sealing Method Die Hole Q’ty (Max)
HWED-32A Hydraulic Clamping 200 kgf/㎠ (3.5ℓ/min) 1,963 ㎟ 20 sec Breaker Plate Ø3.5 * 15 Hole
HWED-43A 250 kgf/㎠ (4.5ℓ/min) 3,548 ㎟ Ø3.5 * 25 Hole
HWED-58A 300 kgf/㎠ (5.5ℓ/min) 6,511 ㎟ Ø3.5 * 40 Hole
HWED-75A 350 kgf/㎠ (6.4ℓ/min) 10,242 ㎟ Ø3.5 * 65 Hole
HWED-102A 450 kgf/㎠ (8.0ℓ/min) 17,693 ㎟ Ø3.5 * 95 Hole
Common Matters □ Power : 440V * 3P * 60(50)Hz □ Hy’d Cylinder : Circulation Water Cooling
□ Die Support & Swing System, Hy’d Tank (Connecting Pipe & Elec’t Cable 10M)
Electric Heater, Thermocoupling, Breaker & Die Plate are included. (Resin Pressure and Temperature Gauge are separated Items.)
□ Control Panel : Open, Close, Emergency Button type
□ This product is single control type, and O/P & Local Panel linkage is another case.
