Estimate Request Form

If you fill the below box and click the requesting estimate, we will forward within 3 days after the receipt.

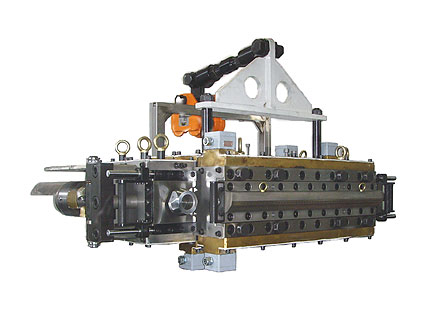

Die Head Product Name Die Head
Model No HWED-75A
Type Hydraulic Clamping
Oil Hy`d Unit (High Pre`s) 350 kgf/㎠ (6.4ℓ/min)
Cylinder Area 10,242 ㎟
Clamping Time 20 sec
Sealing Method Breaker Plate
Die Hole Q’ty (Max) Ø3.5 * 65 Hole
The standard manufacturing period 60Days / SET (Being flexible depending on an ordering date.)
Delivery Condition Alighting at the designated place in your factory
Q’ty (Machine) SET
Common Matters □ Power : 440V * 3P * 60(50)Hz □ Hy’d Cylinder : Circulation Water Cooling
□ Die Support & Swing System, Hy’d Tank (Connecting Pipe & Elec’t Cable 10M)
□ Electric Heater, Thermocoupling, Breaker & Die Plate are included. (Resin Pressure and Temperature Gauge are separated Items.)
□ Control Panel : Open, Close, Emergency Button type
□ This product is single control type, and O/P & Local Panel linkage is another case.
