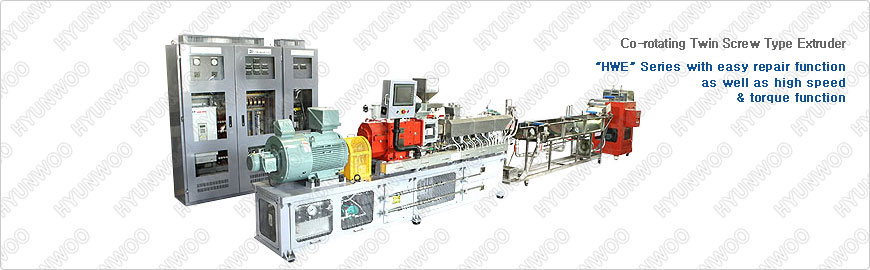

Twin Screw Extruder (Piloting)
■ Specification & Throughput ※ If you click the model name, you can see the details.
Model Applications |
Unit | HWE-32 | HWE-43 | ||
|---|---|---|---|---|---|
| Basic | Super | Basic | Super | ||
| Barrel In-Dia | mm | 32 | 43 | ||
| Barrel Length | L/D | 30.4 | 37.1 | 32.2 | 39.4 |
| Torque | Nm | 750 | 870 | 990 | 1170 |
| Power (AC) | Kw | 30 | 45 | 45 | 75 |
| Screw Speed | rpm | 300 | 560 | 300 | 560 |
| Weight | Kg | 1800 | 2000 | 2300 | 2500 |
| Polymer Alloying, Coloring… | Kg/Hr | 150 | 180 | 220 | 270 |
| Master batch Compounding | 170 | 210 | 260 | 320 | |
| Fillers, GF Compounding | 160 | 240 | 300 | 360 | |
| Direct film & Sheet processing | 80 | 100 | 130 | 160 | |
Standard Application
| Production Item | Materials | Remark (Compound) |
|---|---|---|
| Polymer Alloying(PC+ABS, PPE+PA, PET+PBT, POM+TPU, PC+PET, PC+PBT, ABS+PVC, PP.PA+PA+Elastomers), Coloring, Additive dispersion, Reaction | Polyolefin, Engineering plastics |
Additives, Pigments ~4%, Flame retardant 20~60% |
| Master batch Compounding | TiO2 ~60%, Carbon black ~40%, Pigments ~40%, Fillers : Talc, CaCO3, BaSO4 ~70%, SiO2,Wooden powder,Glass beads ~50% |
|
| Fillers, GF Compounding | GF, CF 30~50%, Fillers : Talc, CaCO3, BaSO4 ~40%, Plastic magnet, Ferrite less than 80% |
|
| Direct film & Sheet processing | Filler sheet+PP, HDPE+Filler sheet, PET film & Sheet, EVA+Filler sheet, Engineering plastic sheet | |
