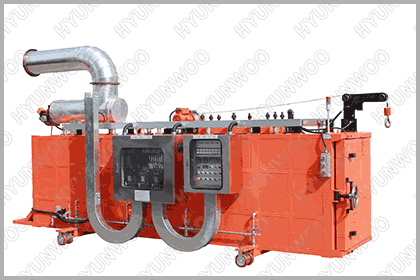

Cleaning Furnace
This product is a device for cleaning the extruder parts which occurs during grade change by using the electric heater and the second lane which is responsible for the pyrolysis of the resin and the incinerator of the pyrolyzed vapor.
■ Specification ※ If you click the model name, you can see the details.
| Model | Type | Heater Capa | Burner Capa | Work Size | Cycle Temperature |
|---|---|---|---|---|---|
| HWCF-45 | Electric Heater | 109.2 Kw | 100,000 Kcal/Hr | 330mm * 600mm * 4000mm | 400 ~ 480 ℃ |
| Common Matters | □ Power Source : 440V * 3P * 60(50)Hz □ First Way Heating : Electric Heater □ Afterburner Type : Gas or Oil □ Control Panel : Internal Temperature Control, Winch drive control, Water Spray Control, Afterburner Control, Attachment of automatic operation switch and emergency button □ This product is composed of single control type and all installation work is separate. |
||||
