Estimate Request Form

If you fill the below box and click the requesting estimate, we will forward within 3 days after the receipt.

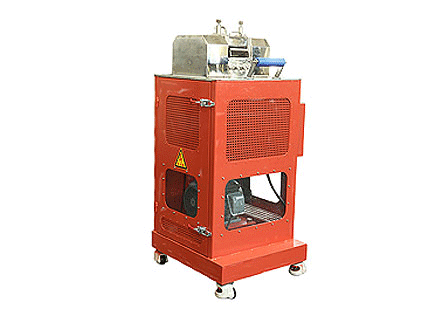

Pelletizer Product Name Pelletizer
Model No HWEP-58RS
Type Rotary Cutter
Power (Inverter Drive) 5.50 Kw(AC)
Rotor Length 200 mm
Strand Speed 30~90 m/min
Q’ty of Strands (Max) Ø3 * 21 Q'ty
Polymer Alloying 470 Kg/Hr
Master batch Compounding 530 Kg/Hr
Fillers & GF Compounding 580 Kg/Hr
Direct film & Sheet processing 260 Kg/Hr
The standard manufacturing period 45Days / SET (Being flexible depending on an ordering date.)
Delivery Condition Alighting at the designated place in your factory
Q’ty (Machine) SET
Common Matters □ Power Source : 440V * 3P * 60(50)Hz
□ Control Panel : Internal Inverter, Separate Control Type (Display and Control of Speed, Ampere = Manual & Auto, Emergency)
□ When main operate & local panel are interlocked, separate construction is required.
