Estimate Request Form

If you fill the below box and click the requesting estimate, we will forward within 3 days after the receipt.

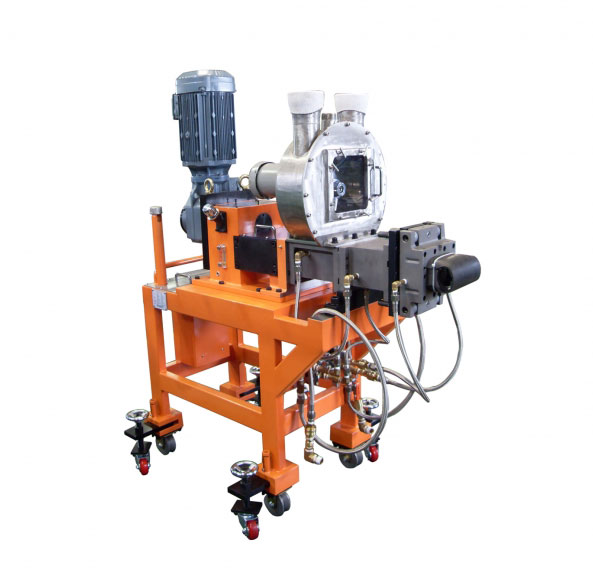

Side Feeder Product Name Side Feeder
Model No HWEF-43
Main Motor AC 1.50 Kw
Speed Inverter 32~360 rpm
Feed Twin Screw L/D=7
Hopper
(chute)
Type Standard Straight
Motor Standard Straight
Speed Standard Straight
About Mat’l GF, CF ~40%
Capa 200Kg/Hr
The standard manufacturing period 45Days / SET (Being flexible depending on an ordering date.)
Delivery Condition Alighting at the designated place in your factory
Q’ty (Machine) SET
Common Matters □ Power Source : 440V * 3P * 60(50)Hz
□ Feed Cylinder : Water Cooling Jacket
□ Including Base Sliding Rail
Control Panel : Adjusting Speed (Main = Inverter, Agitator = Fixing), Attaching Manual, Automatic Operation S/W and Emergent Button
□ This product is single control type, and O/P & Local Panel linkage is another case.
Separate Request Item
Attaching File
(Picture, Data)
